Kraft paper tape fails for reasons that have nothing to do with the tape. In most cases where cartons arrive with lifted corners or split seams, the cause traces back to the dispenser: uneven moistening, a ragged cut, or a roll that never fed smoothly. The kraft tape dispenser is the piece of equipment that converts a roll of gummed paper into a working seal, and buying one without matching it to the tape and the workflow is how packaging budgets quietly go sideways.
Air Power Pak’s range covers four operating styles plus a measurement accessory. What follows is the practical detail behind each, framed around the questions buyers actually ask before placing an order.
Start With the Tape, Not the Machine
The most common specification error in this category is ordering equipment before confirming tape dimensions. Water-activated kraft tape is sold in multiple widths, and a dispenser built for one width will not reliably feed another. Buyers who already hold tape inventory should measure the roll width and diameter first, then check the dispenser’s supported range.
For reference, the GHC-50 handheld unit supports 50 mm tape width with a maximum roll diameter of 140 mm, and is designed for standard non-reinforced kraft tape. Reinforced tape may feed less smoothly through it. The NT-800 bench unit supports widths from 20 to 100 mm and roll diameters up to 200 mm, which gives it more flexibility if tape specifications might change later. Neither constraint is a flaw — but both are the kind of detail that only surfaces after delivery if the confirmation step gets skipped.
Four Operating Styles and What Each Actually Solves
Handheld (GHC-50). Roughly 330 g, an 80 ml reservoir, a moistening brush, and a cutting blade. No power cord, no installation. This unit exists for flexibility: sealing cartons at the end of a packing table, beside a pallet, or on a cart moving between zones. The tradeoff is that output depends entirely on operator rhythm. A steady pull lets the brush wet the adhesive evenly; a fast, jerky pull leaves dry patches that never bond. It rewards technique and punishes haste.
Lever bench (NT-800). The operator sets the length and pulls a lever; the machine feeds, moistens, and cuts. A single water fill covers roughly 100 to 200 standard cartons. This is the model most often misjudged during specification — buyers sometimes expect automatic length selection and discover the operator controls length. For teams whose real problem is inconsistent tape length across shifts, that manual control is the solution, not a shortcoming. Standardization happens with every pull, without electronics.
Automatic (NT-AT 3.0). Dispenses at 60 m/min, holds a 3.5 L water tank, and runs below 75 dB at shutoff. The larger tank reduces refill interruptions across a shift, and the delivery speed means a one-meter strip dispenses in about a second. For cross-border e-commerce operations processing high order volumes, those figures compound over a working day.
Sensor-operated (Tape-AT). Moves the trigger from a button to hand proximity, dispensing at an average of 60 m/min with a 2.5 L tank and adjustable water temperature from 0 to 80°C. The 45-degree case angle is set to reduce shoulder strain during extended use. This fits stations where the operator holds a carton steady with one hand and cannot comfortably reach a button with the other. It adds less where cartons lie flat during sealing.
The Volume Question, Answered Honestly
Buyers routinely overestimate the point at which automation becomes worthwhile. The useful test is cartons per shift on the busiest day, not the weekly average. An operation with a steady rhythm and a moderate count can reach consistent results with the NT-800. One sealing in the thousands per day will feel the manual pull in the wrists before a shift ends, and that is where the automatic and sensor models justify themselves. Buying above actual needs adds maintenance burden without adding throughput.
A Quiet Source of Waste
The UM-CJ01 tape length detector measures a carton placed near it and calculates the required tape length, with detection distance from 3 to 200 cm and accuracy within 1 cm. It works with the NT-ATv2.0 model. Manual estimation produces two failures that rarely appear in a cost report: tape cut short, requiring a second piece that compromises the seal, and tape cut long, wasting material on every carton. Across thousands of cartons, the second failure accumulates without anyone identifying the cause.
Maintenance That Determines Service Life
Moistening consistency governs seal quality more than tank capacity does. A dispenser that wets one edge more heavily than the other will produce corner lift-offs regardless of how much water it holds. Test a new unit on a dozen cartons and inspect the dried seals before scaling up to production volume.
The routine that prevents most problems is short. Rinse the moistening brush weekly to clear dust and adhesive residue. Empty the reservoir before extended idle periods to avoid stagnant water and odor. Clear paper scraps from the blade area, since accumulated fragments misalign cuts. On manual units, teach the correct pull rhythm — a steady draw gives the brush time to transfer moisture evenly.
For Distributors and Resellers

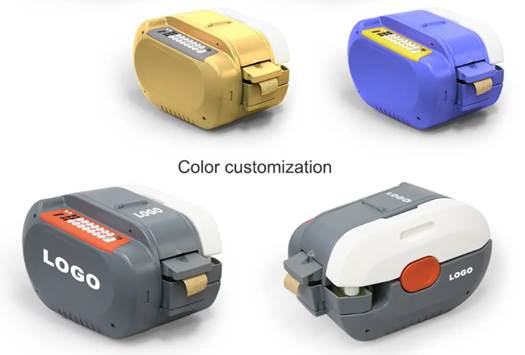

A kraft tape dispenser is only part of the sourcing decision for distributors. Spare parts availability, warranty terms, and OEM/ODM flexibility determine whether a product line stays sustainable after the first order. Air Power Pak offers customization on selected models, including logo printing and body color, with minimum order quantities and lead times that vary by model and project requirements. Sourcing dispensers and compatible kraft tape from one supplier simplifies matching and replenishment, but tape specifications should be confirmed before bulk orders are placed.
The decision framework holds: confirm tape width and roll diameter, count cartons on the busiest shift, test seal quality on real cartons, then choose the operating style that matches how the station actually runs.
